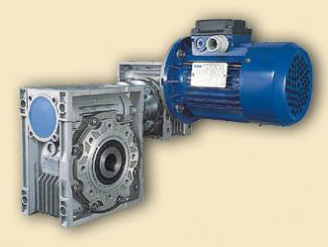

Мощности подключаемых к червячным мотор-редукторам DRV электродвигателей 0,55 - 1,5 кВт
Технические параметры червячных двухступенчатых мотор-редукторов DRV представлены в таблицах ниже.
| Мощность двигателя, кВт | Частота вращения выходного вала, об/мин | Крутящий момент, Нм | Сервис-фактор | Передаточное число | Тип мотор-редуктора | Двигатель IEC | Радиальная нагрузка, Н |
|---|---|---|---|---|---|---|---|
| 0,55 | 9.3 | 306 | 2.0 | 300 | DRV040/090 | 71B2 | 8180 |
| 7.0 | 403 | 1.5 | 400 | 8180 | |||
| 5.6 | 470 | 1.2 | 500 | 8180 | |||
| 4.7 | 639 | 1.7 | 300 | DRV050/105 | 80A4 | 10320 | |
| 3.5 | 826 | 1.2 | 400 | 10320 | |||
| 2.8 | 984 | 1.0 | 500 | 10320 | |||
| 2.3 | 1181 | 0.9 | 600 | 10320 | |||
| 1.9 | 1411 | 0.8 | 750 | 10320 | |||
| 4.7 | 639 | 2.0 | 300 | DRV050/110 | 80А4 | 10320 | |
| 3.5 | 826 | 1.4 | 400 | 10320 | |||
| 2.8 | 984 | 1.1 | 500 | 10320 | |||
| 2.3 | 1181 | 1.0 | 600 | 10320 | |||
| 1.9 | 1411 | 0.9 | 750 | 10320 | |||
| 2.8 | 996 | 1.6 | 500 | DRV063/130 | 80А4 | 13500 | |
| 1.9 | 1471 | 1.2 | 750 | 13500 | |||
| 1.2 | 2132 | 0.8 | 1200 | 13500 | |||
| 0.8 | 2638 | 0.8 | 1800 | DRV063/150 | 80А4 | 18000 | |
| 0.6 | 3182 | 0.8 | 2400 | 18000 | |||
| 0,75 | 7.0 | 549 | 1.1 | 400 | DRV040/090 | 80A2 | 8180 |
| 5.6 | 642 | 0.9 | 500 | 8180 | |||
| 9.3 | 446 | 2.5 | 300 | DRV050/105 | 80А2 | 10320 | |
| 7.0 | 563 | 1.8 | 400 | 10320 | |||
| 5.6 | 687 | 1.5 | 500 | 10320 | |||
| 4.7 | 871 | 1.3 | 300 | DRV050/105 | 80 В4 | 10320 | |
| 3.5 | 1126 | 0.9 | 400 | 10320 | |||
| 9.3 | 446 | 2.8 | 300 | DRV050/110 | 80А2 | 10320 | |
| 7.0 | 563 | 2.1 | 400 | 10320 | |||
| 5.6 | 687 | 1.6 | 500 | 10320 | |||
| 4.7 | 871 | 1.5 | 300 | DRV050/110 | 80 В4 | 10320 | |
| 3.5 | 1126 | 1.1 | 400 | 10320 | |||
| 2.8 | 1358 | 1.1 | 500 | DRV063/130 | 80 В4 | 13500 | |
| 2.3 | 1631 | 1.0 | 600 | 13500 | |||
| 1.9 | 2005 | 0.9 | 750 | 13500 | |||
| 1.6 | 2283 | 0.8 | 900 | 13500 | |||
| 2.8 | 1291 | 1.8 | 500 | DRV063/150 | 80 В4 | 18000 | |
| 2.3 | 1529 | 1.7 | 600 | 18000 | |||
| 1.9 | 1783 | 1.3 | 750 | 18000 | |||
| 1.6 | 2215 | 0.9 | 900 | 18000 | |||
| 1.2 | 2680 | 1.0 | 1200 | 18000 | |||
| 1,1 | 9.3 | 654 | 1.7 | 300 | DRV050/105 | 80B2 | 10320 |
| 7.0 | 845 | 1.2 | 400 | 10320 | |||
| 5.6 | 1007 | 1.0 | 500 | 10320 | |||
| 9.3 | 654 | 1.9 | 300 | DRV050/110 | 80B2 | 10320 | |
| 7.0 | 845 | 1.4 | 400 | 10320 | |||
| 5.6 | 1007 | 1.1 | 500 | 10320 | |||
| 4.7 | 1312 | 1.3 | 300 | DRV063/130 | 90S4 | 13500 | |
| 3.5 | 1671 | 1.0 | 400 | 13500 | |||
| 2.8 | 1991 | 0.8 | 500 | 13500 | |||
| 9.3 | 753 | 3.1 | 150 | DRV063/150 | 90S4 | 18000 | |
| 7.0 | 966 | 2.4 | 200 | 18000 | |||
| 5.6 | 1175 | 1.7 | 250 | 18000 | |||
| 4.7 | 1364 | 1.7 | 300 | 18000 | |||
| 3.5 | 1619 | 1.6 | 400 | 18000 | |||
| 2.8 | 1893 | 1.2 | 500 | 18000 | |||
| 2.3 | 2242 | 1.2 | 600 | 18000 | |||
| 1.9 | 2616 | 0.9 | 750 | 18000 | |||
| 1,5 | 9.3 | 891 | 1.2 | 300 | DRV050/105 | 90S2 | 10320 |
| 7.0 | 1153 | 0.9 | 400 | 10320 | |||
| 5.6 | 1373 | 0.7 | 500 | 10320 | |||
| 9.3 | 891 | 1.4 | 300 | DRV050/110 | 90S2 | 10320 | |
| 7.0 | 1153 | 1.0 | 400 | 10320 | |||
| 5.6 | 1373 | 0.8 | 500 | 10320 | |||
| 9.3 | 915 | 1.9 | 300 | DRV063/130 | 90S2 | 13500 | |
| 7.0 | 1166 | 1.4 | 400 | 13500 | |||
| 5.6 | 1389 | 1.1 | 500 | 13500 | |||
| 4.7 | 1789 | 1.0 | 300 | DRV063/130 | 90L4 | 13500 | |
| 3.5 | 2279 | 0.7 | 400 | 13500 | |||
| 9.3 | 1026 | 2.3 | 150 | DRV063/150 | 90L4 | 18000 | |
| 7.0 | 1317 | 1.8 | 200 | 18000 | |||
| 5.6 | 1602 | 1.3 | 250 | 18000 | |||
| 4.7 | 1860 | 1.3 | 300 | 18000 | |||
| 3.5 | 2208 | 1.2 | 400 | 18000 | |||
| 2.8 | 2582 | 0.9 | 500 | 18000 | |||
| 2.3 | 3057 | 0.9 | 600 | 18000 |
